Products
Products we design and manufacture include:
Chain Hoist controllers
Power distribution units
Electric Pile hoists
Lighting Bars
Cable management systems
5" colour touch screen pendant in custom metal enclosure
Chain Hoist Controllers
Basic chain hoist controllers
Available in:
- 4 way
- 8 way
- 12 way
- 16 way
- 24 way
Features:
- Advanced channel selection
- Bump mode
- Basic E-stop circuit
- Remote pendant input
- Linkable
- Remote power mode

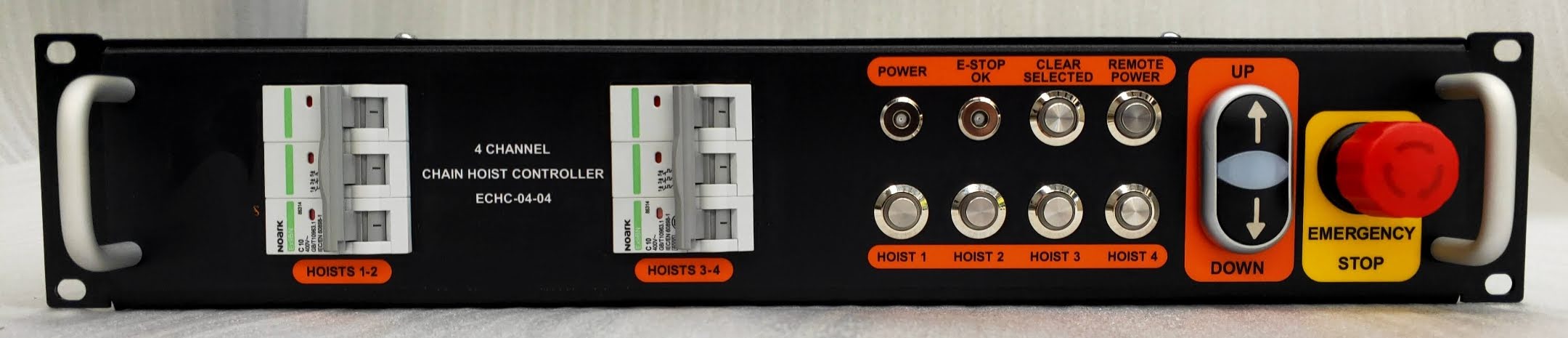

4 way basic chain hoist controller

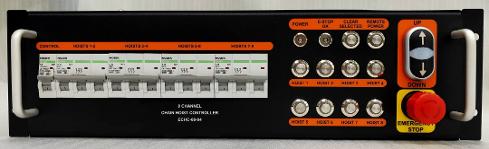

8 way basic chain hoist controller
Professional chain hoist controllers
Available in:
- 8 way
- 12 way
- 16 way
- 24 way
Features:
- Advanced channel selection
- Bump mode
- Cat 3 E-stop circuit
- Remote pendant input with channel selection
- Remote power mode
- Automatic phase rotation correction
- Phase loss detection
Advanced channel selection allows the user to quickly select or de-select a range of channels. For example, by pressing channel 1 and 8 simultaneously, channels 1 to 8 will be selected.
Bump mode allows the user to isolate one channel when multiple channels are selected, making it easy to move just one hoist when without having to de-select and re select multiple channels.
Remote power mode provides power to hoist outputs at all times when active. When remote power mode is not active, power is only supplied to the hoists when the up or down button is pressed.

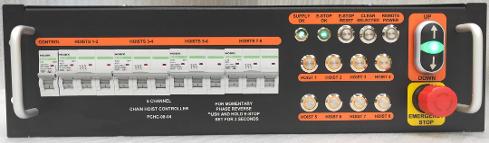

8 Way professional chain hoist controller.

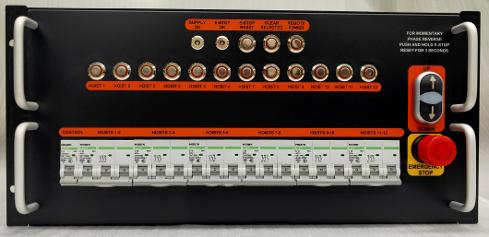

12 Way professional chain hoist controller

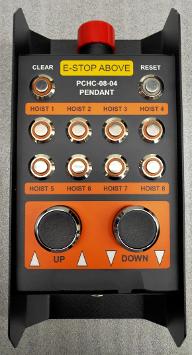

8 Way remote pendant

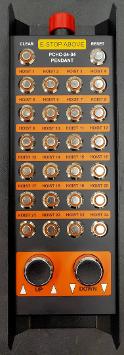

24 Way remote pendant
Positioning chain hoist controllers
Available in:
- 4 way
- 8 way
Features:
- Encoder input for position feedback
- Basic E-stop circuit
- Touch screen user interface
- Linkable
- Loadcell Input with underload / overload
- Grouping with group window halt
- Preset recall

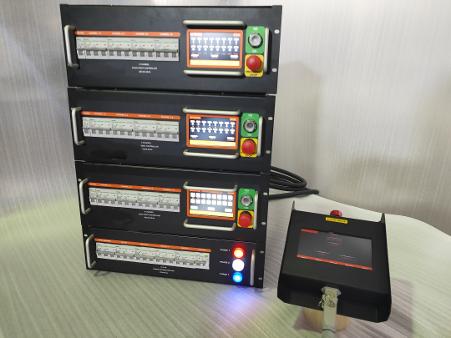

Three 8 way positioning Chain Hoist controllers with 7" touch screen pendant and power distribution unit.

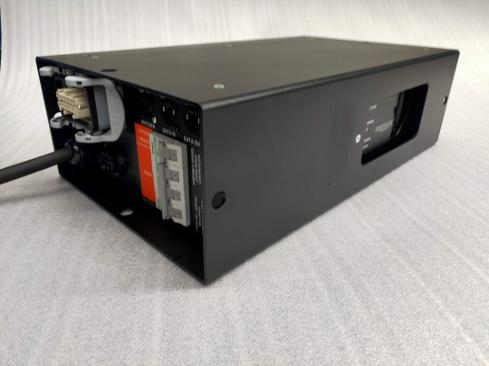

Variable speed positioning hoist controllers
Designed for installation or touring applications the system can improve control of hoists giving acceleration and deceleration ramps along with the option to run the hoist at variable speeds.
Multiple hoists can be controlled with the touch screen user interface with group, preset recall and manual controls as standard.
The emergency stop system has been designed to Cat.3 to provide a high level of safety.
Custom chain hoist controllers

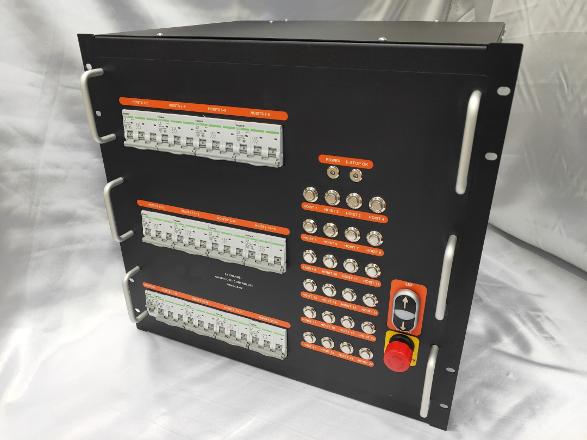

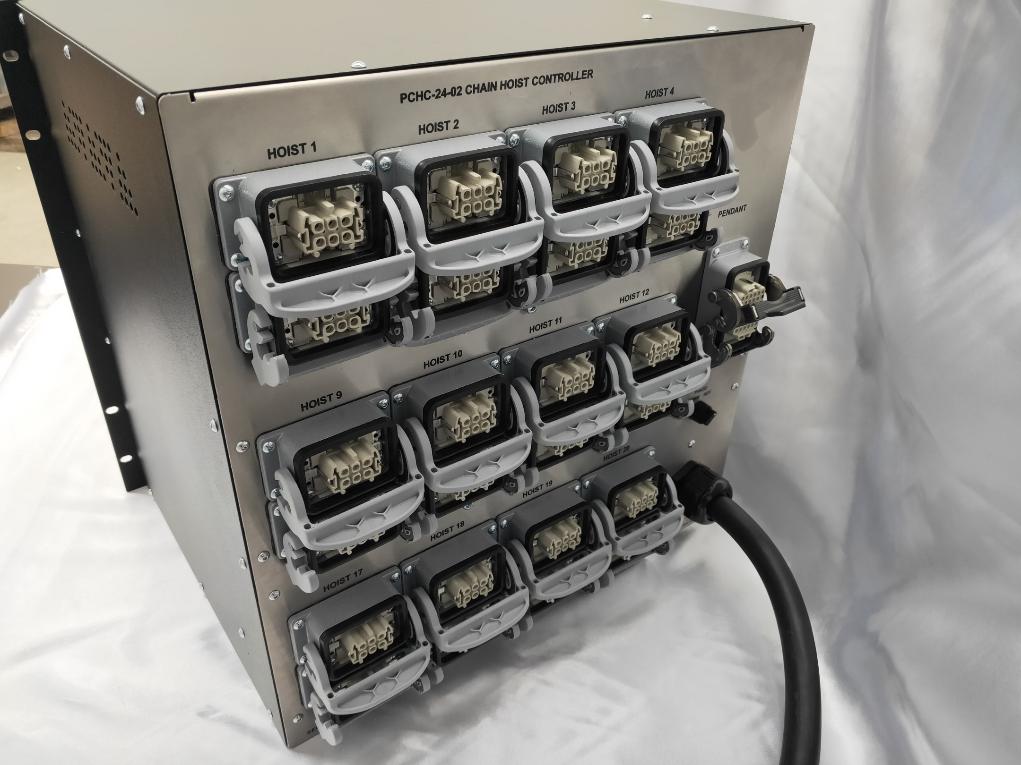

24 way Chain Hoist controller with 6 pole Wieland / Harting connectors.
Optional remote pendant with channel section and up / down operation
Power Distribution Units

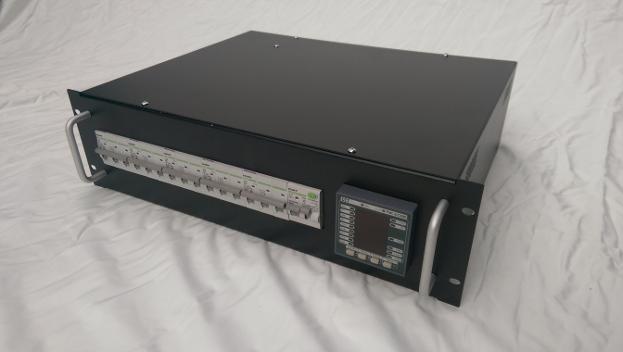

32 Amp Ceeform Power Distribution Unit with Power Meter

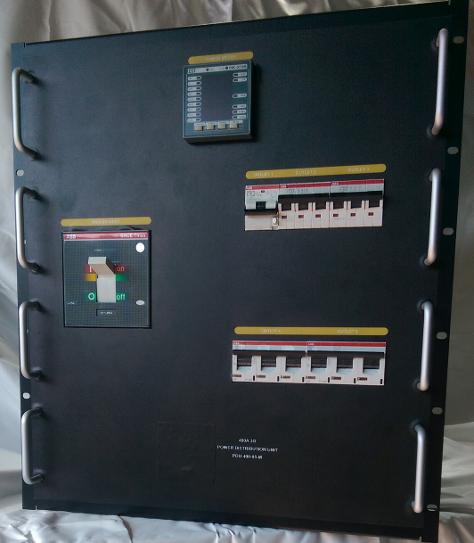

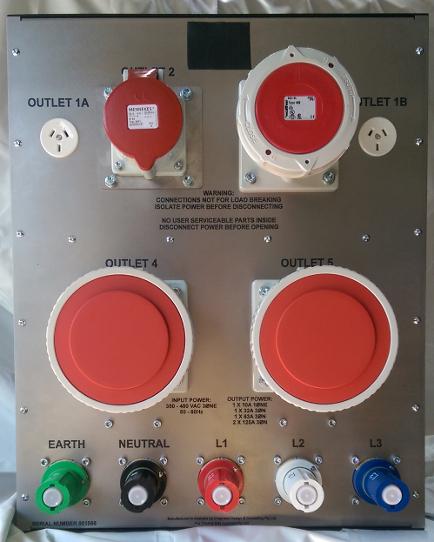

400 Amp Powerlock Power Distribution Unit with Ceeform out and Power Meter
Pile Hoists

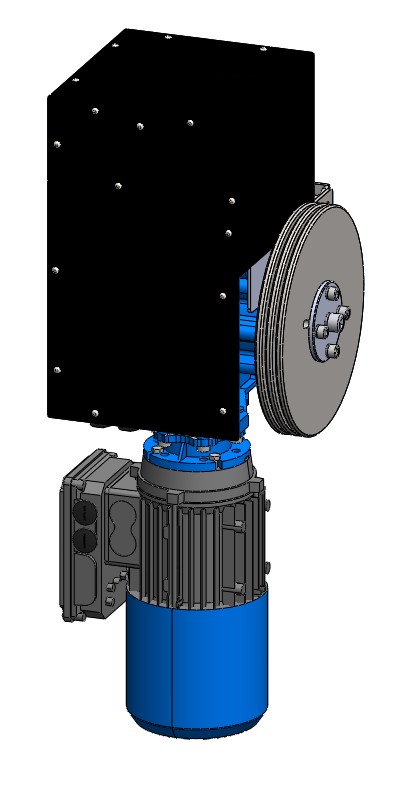

100kg Pile Hoist
We design and manufacture electric Pile Wind Hoists
Our range includes 100kg 2, 3 and 4 line versions along with 400kg 2, 3, 4, 5 and 6 line versions. 10m is drift standard, optional 12m. optional double brake motor
Optional position control via touch screen pendant allows for precise position recall group control and soft limits
Sheaves and head blocks to suit are available
PDF spec sheets below:
100kg version specification sheet
400kg version specification sheet

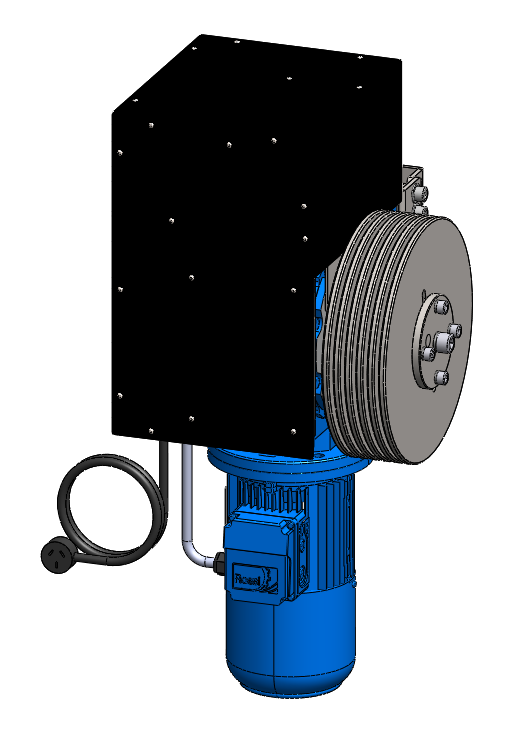

400kg Pile Hoist

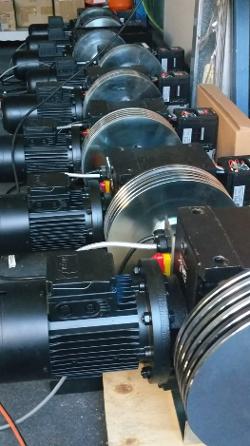

400kg Pile Hoist factory testing
Lighting Bars

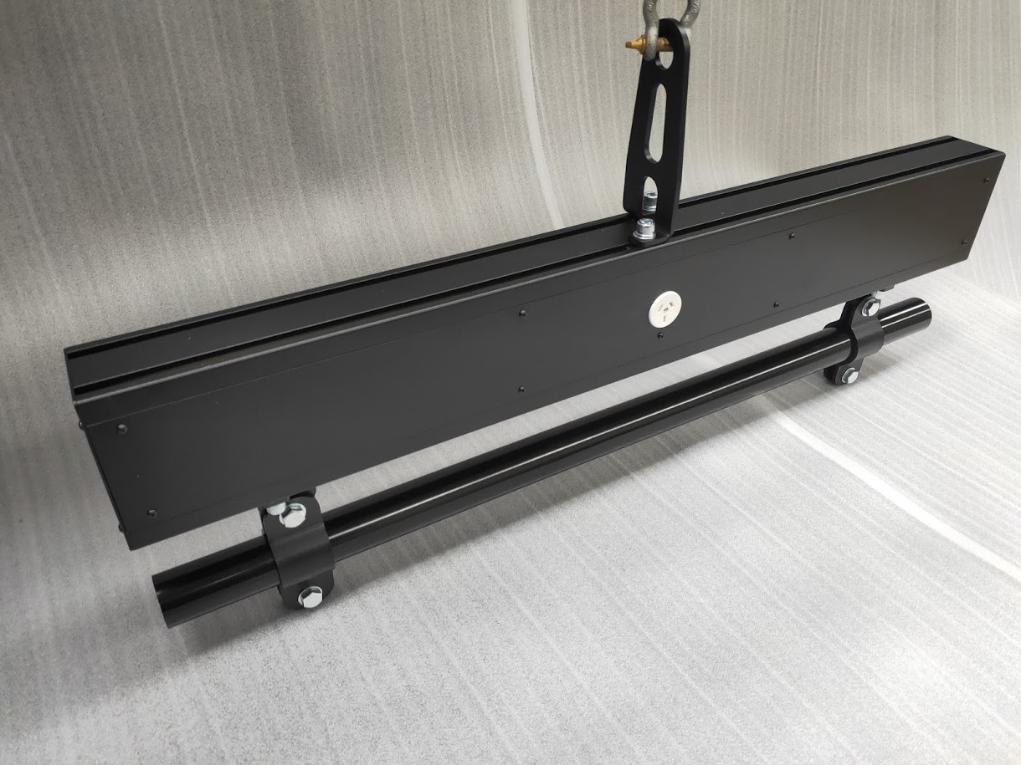

Theatrical lighting bars for suspension of light fixtures and other equipment.
Can be made to almost any length and socket configuration. Suitable for fixed or flown applications. High load capacity with large distances between pickups.
PDF spec sheet below:
ILX Spec Sheet
Cable Management Systems

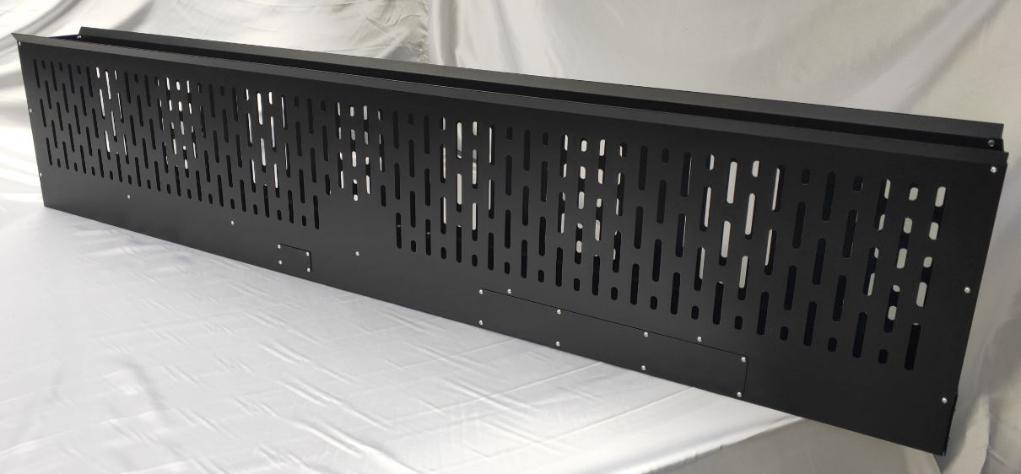

10m Cable Bin, for cost effective vertical cable management and chain hoist cable management. Comes with required length of energy chain. Optional XLR, Ethercon, Wieland or Socopex connectors can be mounted to the base. Can be supplied with cabling and connectors.
17m version also available.
PDF spec sheets below:
10m Cable Bin Spec Sheet 17m Cable Bin Spec Sheet
Automation Services
We offer a broad range of services to help ensure your automation requirements are met with ease, including:
- Control system design
- Control system upgrades
- Control system repairs
- Out of hours break down support
- PLC programming
- HMI programming
- VSD configuration
- Servo configuration
- 2D / 3D drafting (Solidworks)
- Product design and manufacture

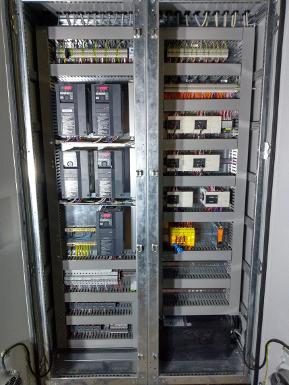

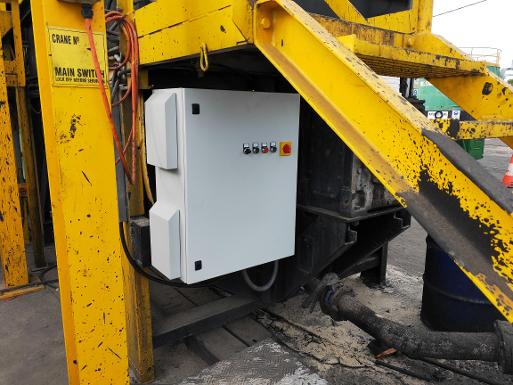

Custom Control Cabinets
Brands we specialise in:
- Mitsubishi Electric
- Omron
- Fatek
- Beijer iX series Exter series HMI
- Wieland Samos Pro Compact Safety PLC
- Reer Mosaic Safety PLC
- Kinesys
- eWon industrial VPN routers
We also support:
- Rockwell
- Siemens
- Schneider
- ABB
- Pilz
Mitsubishi products we specialise in:
- FR-A800 series variable speed drives
- FR-A700 series variable speed drives
- FR-F700 series variable speed drives
- FR-E700 series variable speed drives

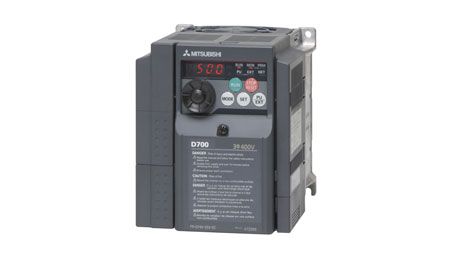

- FR-D700 series variable speed drives
- MR-J4 Servo
- MR-J3 Servo
- MR-J2S Servo
- FX series PLC
- Q series PLC
- QS series PLC
- WS series PLC
- A series PLC
- GOT 1000 HMI
- GOT 2000 HMI
- E series HMI
Home Automation
We have taken our skills from the industrial side of automation and applied them to the growing home automation market. Our systems give home owners control of lighting, blinds, air conditioning, watering systems and other household systems via a wall mounted touch screen and most mobile devices. With the VPN option, users can control their home remotely from a mobile device.
Our systems are suitable for new or existing homes with centralised control or distributed nodes. In place of typical light switches, illuminated push button switch plates are used. The illumination can be used to show the state of the lighting or be set to glow to help find switches in the dark.
Common features available:
- Lighting dimmers (LED downlight suitable)
- Integrated air conditioning controls
- Holiday mode, to give the appearance of someone being home
- Automatic outdoor light timers
- Automatic blind opening and closing
- Automatic gates
- Watering systems
- Water feature control
- Power usage monitoring
- Remote monitoring
Our systems are very customisable to meet project budgets and customer requirements.
Inclinators
We have experience in service and repair of domestic and industrial inclinators. We can provide upgrades to existing control systems for improved functionality and reliability.
